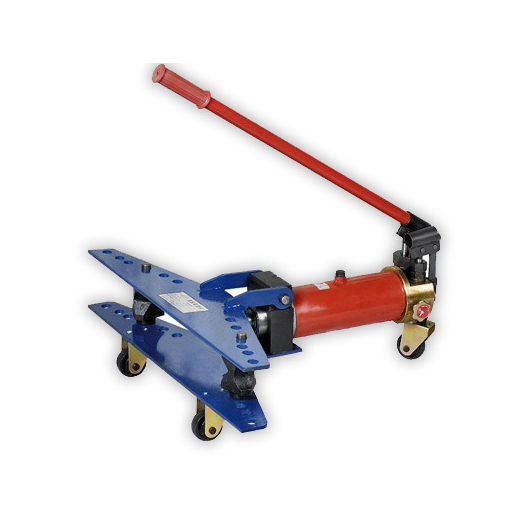

● Suitable for bending metal pipe and tub
● Available with sliding wing heads in either manual or electrical powered versions featuring a single circuit hydraulic system with sprin return which enables the ram to be advanced in controlled stages permitting easy and precise bending of the pipes
● Supplied with a set of bending formers to acommodate different pipe sizes
● A complete set of bending modes is attached
|
Technical parameters： |
|
|
model |

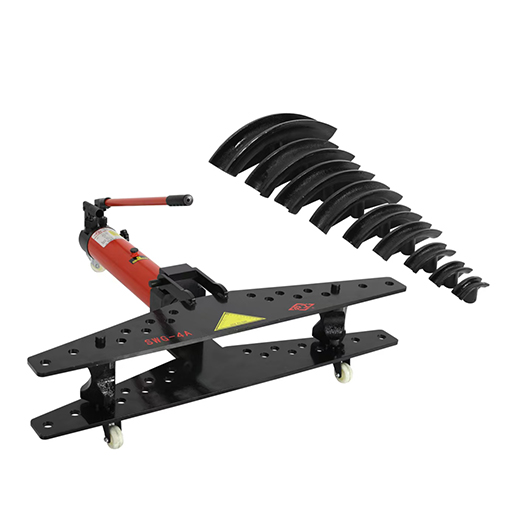

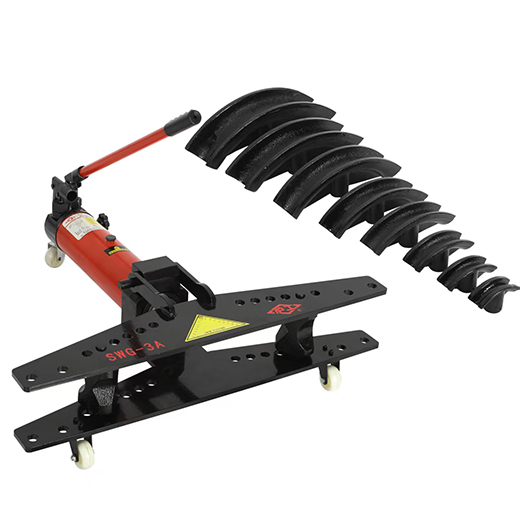

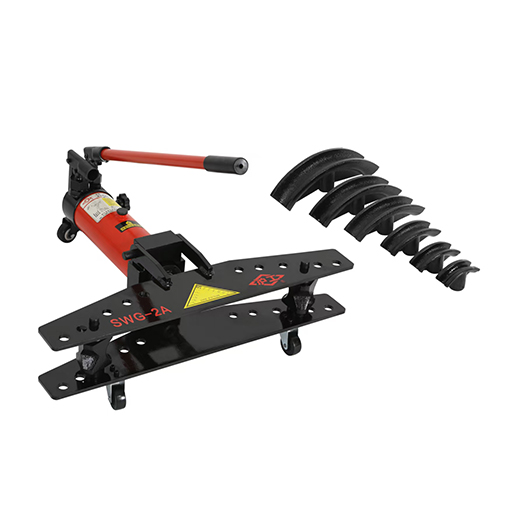

SWG-2A SWG-3B SWG-4D |
|
Standard Equipment |
44Mpa 59Mpa 62Mpa |
|
Work Extent |
250mm 320mm 420mm |
|
Bending Angle |
Л/2≤a≤Л |
|
Bends Radius |
4D |
|
Bends Radius |
21.3-60 21.3-60 75.5-88.5 21.3-60 75.5-108 |
|
Applicable wall thickness |
2.75-4.5 2.75-4.5 4-6 2.75-4.5 4-6 |
|
Weight |
58kg 120kg 140kg |
|
Packing Dimension |
75×39×23 94×46×29 121×50×31.5 |
