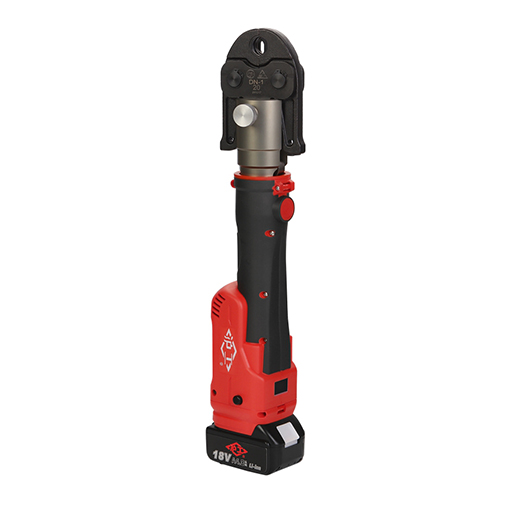

Features
Circuit board diagnostics and compact tool for your needs
One click trigger, with automatic piston reset upon completion of crimping
180° Swivelling barrel easy access to connections
Self-locking, easier to use
Ergonomic in-line design for grip, easily work overhead and in tight spaces
OLED display shows battery percentage, working cycles, fault code,maintenance note
Weight (with battery): 3.63Kg
Weight (with battery and jaw): 5.45Kg
Dimensions: 455x120x75mm

Technical Data
Capacity                        12-54mm stalnless steel pipe; 12-08mm(/2"-4)for PEX,Multl-layer composite and cooper pipe
Ram force                       32KN
Stroke                          40mm
Pressing Cycle Time             3-6s (depends on the dia of pipe)
Crimping Cycles/charge          350cycles(DN 20 stainless steel)
Service Interval                10000cycles
Voltage/capacity                18v/4.0Ah
Charging time                   Approx.80 mins
Charging voltage                AC 100V-240V;50-60Hz
Package                         Plastic box

Accessories
Battery                         2pcs
Charger                         1pc
Sealing ring of cylinder        lset
Press jaw                       For optional
